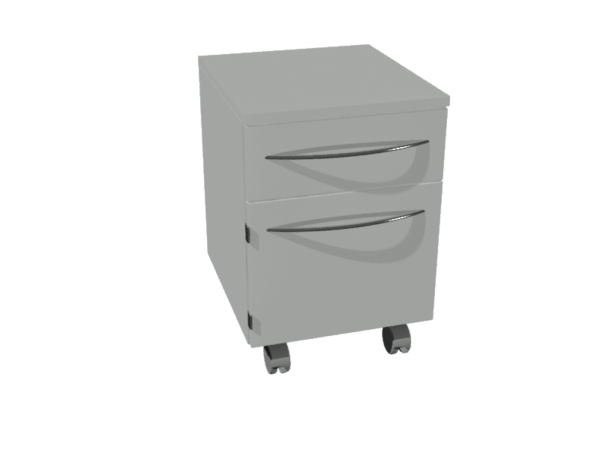

Cabinet on wheels for 750mm height

Description

Cabinet under Bench C frame for easy cleaning, made by Steel Epoxy coated under different sizes: 450 mm, 600 mm and 900 mm.It can have:·        1 door ,·        1 door 1 drawer·        4 drawers. General Characteristics Entirely built of cold-laminated galvanized steel, for placement under the metal structure and worktop. Cabinet steel has undergone the processes of lamination, degreasing, electrolytic zinc coating, phosphating, chroming, cold-cutting and cold-forming; The steel is protected by an organic coating of epoxy-polyester resin applied electrostatically.Door panel reinforced where secure hinges are screwed and consist of a double steel panel with a non-friction polyvinyl chloride coating. Hinges shall be removable; 270º opening hinges. Compliance with the following standards: “UNE EN 14727:2006”Laboratory furniture – Storage units for laboratories – Requirements and test methods.The model tested satisfactorily fulfils the specifications for the standards applied in the following sections:TESTSRESULTS- Sect. 6 – General safety requirements- Sect. 7.1.1 – Stable position of the shelves- Sect. 7.1.2 – Deflection of shelves- Sect. 7.2 – Strength test of shelf supports- Sect. 7.3.2 – Strength of pivoted doors- Sect. 7.3.4 – Durability of pivoted doors with hinges (n= 50.000 cycles)- Sect. 7.5.2 – Slam open of drawers- Sect. 7.5.3 – Strength of the drawers- Sect. 7.5.4 – Durability of the drawers (n= 50.000 cycles)- Sect. 7.5.5 – Displacement drawer bottom- Sect. 7.7.2 – Static load on top surfaces of storage unitsCORRECTCORRECTCORRECTCORRECTCORRECTCORRECTCORRECTCORRECTCORRECTCORRECTCORRECTCabinet On wheels 3D:Dimensions: (mm)
